Publicación

systematic review

Published in spanish Científica Dental Vol. 18. Nº 4. 2021 www.cientificadental.es

Clinical utility properties of new endodontic silicate-based sealers: a systematic review

Resumen

Introduction: Filling in the root canal system plays a key role in the success of endodontic treatment. New silicate-based sealers have recently been introduced on the market to improve the properties of sealers used in these treatments. Before performing endodontic treatment, it is always useful to know the properties of different sealers.

Objectives: The aim of this study was to review the literature and compare the clinically useful properties of new silicate-based sealers with those of conventional epoxy resin-based cements.

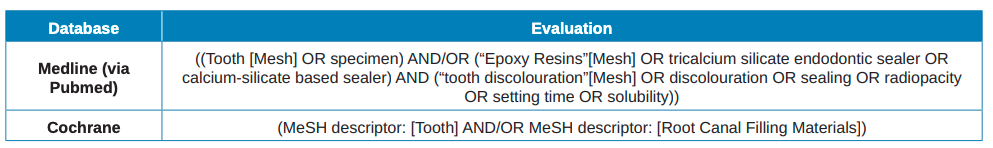

Methods: After establishing the adapted research question, a literature review was carried out in two databases (Medline via Pubmed and Wiley Library via Cochrane Library) combining MeSH (Medical Subject Headings) and free terms. A manual electronic search was also performed. The clinically useful properties selected were discolouration, sealing capacity, radiopacity, setting time and solubility.

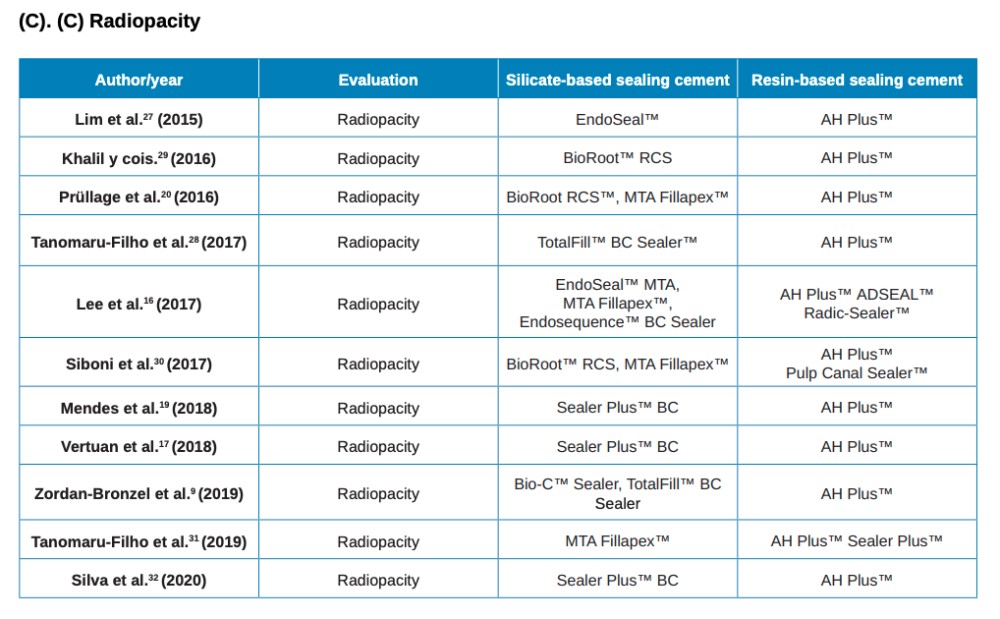

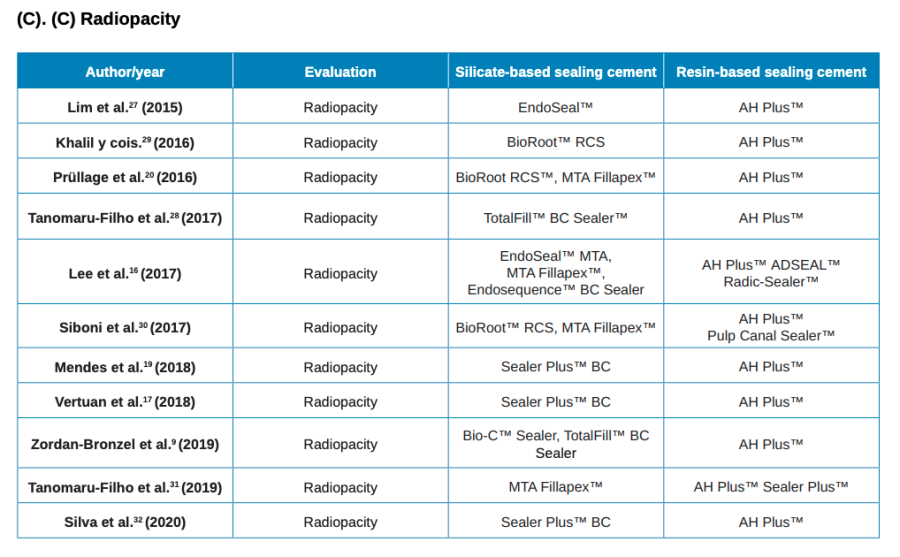

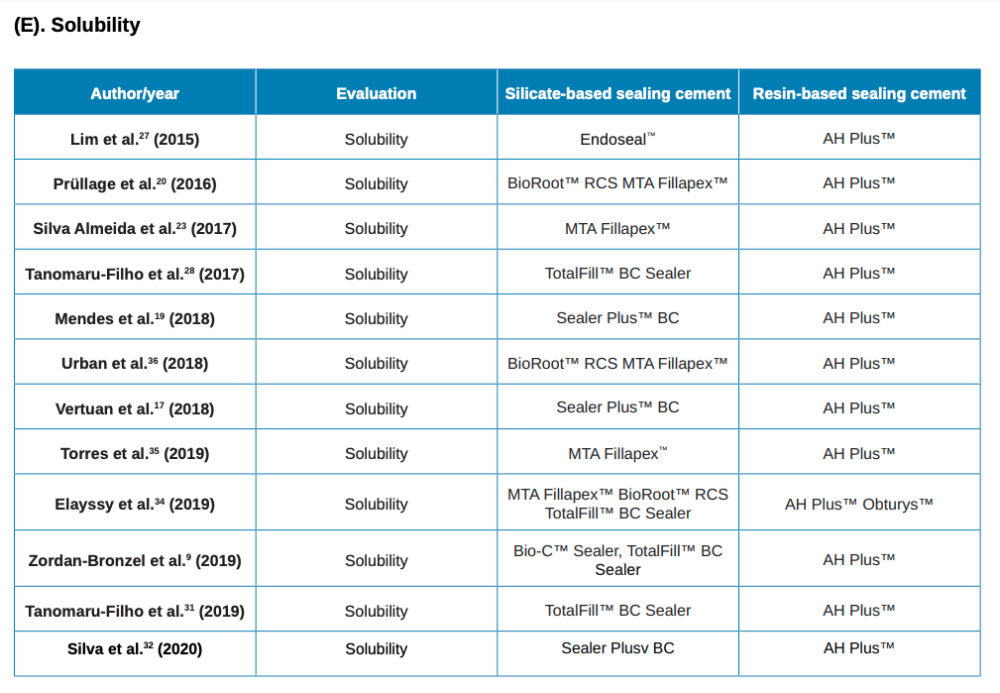

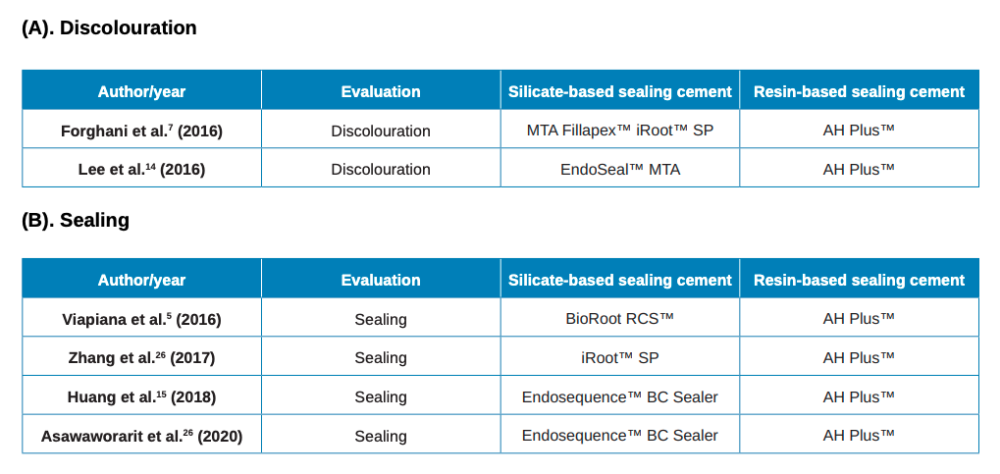

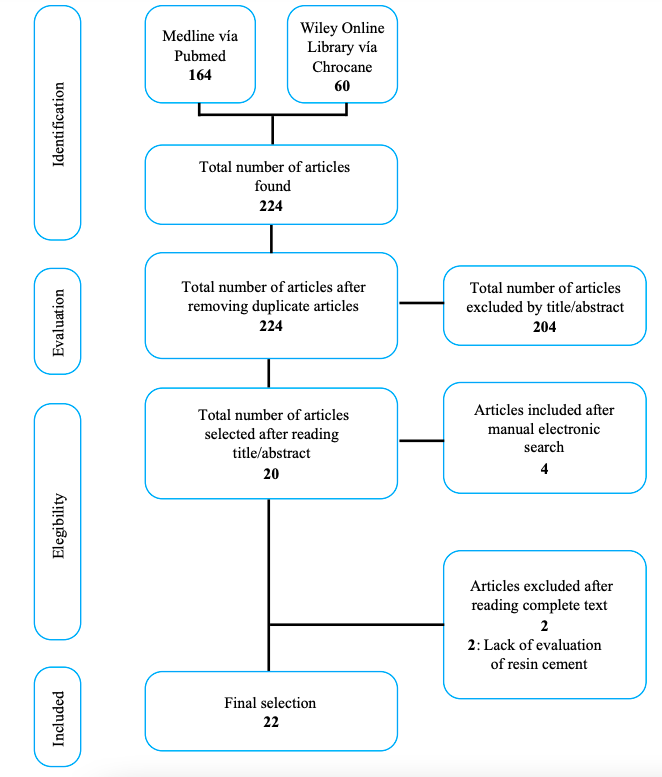

Results: Of the 224 potential studies obtained, 20 were selected for reading of the full text. Another 4 studies were selected after manual electronic searching of which 2 were excluded, leaving 22 studies for inclusion in the review. The following physical properties were analysed: 2 for tooth discolouration; 4 for sealing ability; 11 for radiopacity; 9 for setting time; and 12 for solubility; 9 of the articles evaluated several properties.

Conclusions: No differences in tooth discolouration were observed between silicate-based and resin sealers. No differences in sealing ability were observed in most of the studies consulted. All sealers analysed showed radiopacity values within the recommended standards. Both setting time and solubility depended on the type of sealer; with some of the silicate-based sealers having higher solubility than the resin-based.

Abstract
Este artículo está exclusivamente disponible para su descarga en PDF. | 03/24/2024
Palabras clave
Bioceramic sealers, Endodontic sealers, Resin sealers, Sealing
Introducción

After shaping and cleaning the route canal system, complete sealing is needed for success in endodontic treatment1 . The materials used regularly for sealing are gutta-percha and sealing cements2 . Sealing cements are substances capable of penetrating between the sealer material and root canals3 . There are different types on the market, however, despite having many of the properties described by Grossman, they do not have them all4 . They can be classified according to their main components5 : Zinc oxide eugenol, calcium hydroxide, glass ionomer, silicone, resin and bioceramic cements6 .

Currently, those composed of resins are used most, with the epoxy resin cement AH Plus™, being considered the Gold Standard3,7. However, this cement has a series of limitations, which are possible cytotoxicity, mutagenicity and inflammatory response8 . Another limitation is its lack of bioactive properties9 . Therefore, new types of sealant called bioceramic cements10 have recently arrived on the market. These cements are based on the biological properties of MTA11 and include calcium silicates, phosphates and hydroxide as well as zirconium oxide as a radiopacifier12. The development of bioceramic cements has been based on obtaining good biocompatibility; however, these cements must also have adequate physical properties4 .

One of the issues that has gained importance in recent years is aesthetics7 . The aesthetic result of root canal treatment is important, especially in the anterior region13, as some remains of sealant cement can be left behind, despite the access cavity being adequately prepared and cleaned with alcohol14. Sealing capacity is another property of new sealant cements considered important5 . The dimensional changes of the root canal system, and the lack of adhesion of gutta-percha, make a complete seal necessary to obtain. Thus, adaptation of the sealant cement is a factor that influences the microfiltration and reinfection of the root canal system15. Another property considered essential is radiopacity, as it means clinicians can distinguish between the materials used and adjacent anatomical structures16, as well as evaluate the quality of the root canal filling17.

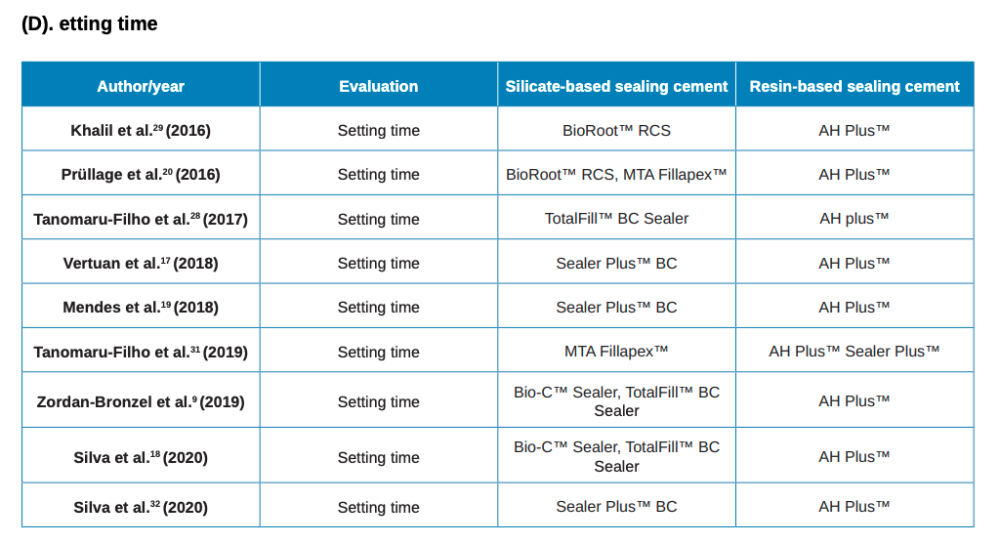

Another physical property the clinician must take into account is setting time. Slow or incomplete setting can lead to greater tissue irritation18, while too short a setting time can reduce working time by complicating and interfering with the sealing process19. Therefore, the setting time must be long enough to allow easy handling, especially for sealing techniques that require more time20. Solubility is another property that has special relevance when evaluating sealant cements21. Dissolution of the sealant cement can interfere with the quality of the root canal treatment and trigger an inflammatory response of the periapical tissues21,22. There may also be a vacuum between the sealer material and the root canal, increasing infiltration over time21. Therefore, sealant cements have low solubility22.

It is important to know the physical properties of the different resin based cements on the market. The objective of this systematic review was to analyse the scientific evidence behind the different properties of clinical significance of silicate-based sealants – such as dental discoloration, sealing capacity, radiopacity, setting time and solubility – and compare them with conventional resin cements.

Bibliografía
1

Troiano G, Perrone D, Dioguardi M, Buonavoglia A, Ardito F, Lo Muzio L. In vitro evaluation of the cytotoxic activity of three epoxy resin-based endodontic sealers. Dent Mater J 2018;37:374–8.



2

Dimitrova-Nakov S, Uzunoglu E, Ardila-Osorio H, Baudry A, Richard G, Kellermann O, y cols. In vitro bioactivity of BiorootTM RCS, via A4 mouse pulpal stem cells. Dent Mater 2015;31:1290–7.

3

Piai GG, Duarte MAH, Nascimento AL do, Rosa RA da, Marcus Vinícius Reis S, Vivan RR. Penetrability of a new endodontic sealer: A confocal laser scanning microscopy evaluation. Microsc Res Tech 2018;81:1246–9.

4

Zhou HM, Du TF, Shen Y, Wang ZJ, Zheng YF, Haapasalo M. In vitro cytotoxicity of calcium sSilicate-containing endodontic sealers. J Endod [Internet]. 2015;41:56– 61.

5

Viapiana R, Moinzadeh AT, Camilleri L, Wesselink PR, Tanomaru Filho M, Camilleri J. Porosity and sealing ability of root fillings with gutta-percha and BioRoot RCS or AH Plus sealers. Evaluation by three ex vivo methods. Int Endod J 2016;49:774–82.

6

Jafari F, Jafari S. Composition and physicochemical properties of calcium silicate based sealers: A review article. J Clin Exp Dent. 2017;9:e1249–55.

7

Forghani M, Gharechahi M, Karimpour S. In vitro evaluation of tooth discolouration induced by mineral trioxide aggregate Fillapex and iRoot SP endodontic sealers. Aust Endod J. 2016;42:99–103.

8

Lim M, Jung C, Shin D-H, Cho Y, Song M. Calcium silicate-based root canal sealers: a literature review. Restor Dent Endod. 2020;45:1–17.

9

Zordan-Bronzel CL, Esteves Torres FF, Tanomaru-Filho M, Chávez-Andrade GM, Bosso-Martelo R, Guerreiro-Tanomaru JM. Evaluation of physicochemical properties of a new calcium silicate– based sealer, Bio-C Sealer. J Endod. 2019;45:1248–52.

10

Munitić MS, Peričić TP, Utrobičić A, Bago I, Puljak L. Antimicrobial efficacy of commercially available endodontic bioceramic root canal sealers: A systematic review. PLoS One. 2019;14:1– 20.

11

Colombo M, Poggio C, Dagna A, Meravini MV, Riva P, Trovati F, et al. Biological and physico-chemical properties of new root canal sealers. J Clin Exp Dent. 2018;10:e120–6.

12

Bueno CRE, Valentim D, Marques VAS, Gomes-Filho JE, Cintra LTA, Jacinto RC, y cols.. Biocompatibility and biomineralization assessment of bioceramic-, epoxy-, and calcium hydroxide-based sealers. Braz Oral Res. 2016;30:1–9.

13

Kohli MR, Yamaguchi M, Setzer FC, Karabucak B. Spectrophotometric analysis of coronal tooth discoloration induced by various bioceramic cements and other endodontic materials. J Endod [Internet]. 2015;41:1862–6.

14

Lee DS, Lim MJ, Choi Y, Rosa V, Hong CU, Min KS. Tooth discoloration induced by a novel mineral trioxide aggregatebased root canal sealer. Eur J Dent. 2016;10:403–7.

15

Huang Y, Orhan K, Celikten B, Orhan AI, Tufenkci P, Sevimay S. Evaluation of the sealing ability of different root canal sealers: A combined SEM and micro-CT study. J Appl Oral Sci. 2018;26:1–8.

16

Lee JK, Kwak SW, Ha JH, Lee WC, Kim HC. Physicochemical properties of epoxy resin-based and bioceramic-based root canal sealers. Bioinorg Chem Appl. 2017;2017:1–9.

17

Vertuan GC, Duarte MAH, Moraes IG de, Piazza B, Vasconcelos B de C, Alcalde MP, y cols. Evaluation of Physicochemical Properties of a New Root Canal Sealer. J Endod [Internet]. 2018;44:501–5.

18

Silva EJNL, Ehrhardt IC, Sampaio GC, Cardoso ML, Oliveira D da S, Uzeda MJ, y cols. Determining the setting of root canal sealers using an in vivo animal experimental model. Clin Oral Investig. 2021;25:1899–906.

19

Mendes AT, Silva PB da, Só BB, Hashizume LN, Vivan RR, Rosa RA da, et al. Evaluation of physicochemical properties of a new calcium silicate– based sealer, Bio-C Sealer. Braz Dent J. 2018;29:536–40.

20

Prüllage RK, Urban K, Schäfer E, Dammaschke T. Material properties of a tricalcium silicate–containing, a mineral trioxide aggregate–containing, and an epoxy resin–based root canal sealer. J Endod. 2016;42:1784–8.

21

Silva EJ, Perez R, Valentim RM, Belladonna FG, De-Deus GA, Lima IC, y cols. Dissolution, dislocation and dimensional changes of endodontic sealers after a solubility challenge: a micro-CT approach. Int Endod J. 2017;50:407–14.

22

Silva EJNL, Cardoso ML, Rodrigues JP, De-Deus G, Fidalgo TK da S. Solubility of bioceramic- and epoxy resin-based root canal sealers: A systematic review and meta-analysis. Aust Endod J. 2021:1–13.

23

Kharouf N, Arntz Y, Eid A, Zghal J, Sauro S, Haikel Y, y cols. Physicochemical and Antibacterial Properties of Novel, Premixed Calcium Silicate-Based Sealer Compared to Powder–Liquid Bioceramic Sealer. J Clin Med. 2020;9:3096.

24

Oh S, Cho SI, Perinpanayagam H, You J, Hong SH, Yoo YJ, y cols. Novel calcium zirconate silicate cement biomineralize and seal root canals. Materials (Basel). 2018;11:1–11.

25

Asawaworarit W, Pinyosopon T, Kijsamanmith K. Comparison of apical sealing ability of bioceramic sealer and epoxy resin-based sealer using the fluid filtration technique and scanning electron microscopy. J Dent Sci [Internet]. 2020;15:186–92.

26

Zhang N, Li X, Miao LY, Wu J, Liu C, Yang WD. Study on the sealing ability of biological root canal sealer iRoot SP in root canal filling. Shanghai Kou Qiang Yi Xue. 2017; 1;26:395–8.

27

Silva EJ, Hecksher F, Vieira VT, Vivan RR, Duarte MA, Brasil SC, y cols. Cytotoxicity, antibacterial and physicochemical properties of a new epoxy resinbased endodontic sealer containing calcium hydroxide. J Clin Exp Dent. 2020;12:e533–9.

28

Lim ES, Park YB, Kwon YS, Shon WJ, Lee KW, Min KS. Physical properties and biocompatibility of an injectable calciumsilicate-based root canal sealer: In vitro and in vivo study. BMC Oral Health [Internet]. 2015;15:1–7.

29

Khalil I, Naaman A, Camilleri J. Properties of Tricalcium Silicate Sealers. J Endod [Internet]. 2016;42:1529–35.

30

Tanomaru-Filho M, Torres FFE, ChávezAndrade GM, de Almeida M, Navarro LG, Steier L, y cols. Physicochemical properties and volumetric change of silicone/bioactive glass and calcium silicate–based endodontic sealers. J Endod. 2017;43:2097–101.

31

Siboni F, Taddei P, Zamparini F, Prati C, Gandolfi MG. Properties of bioroot RCS, a tricalcium silicate endodontic sealer modified with povidone and polycarboxylate. Int Endod J. 2017;50(Special Issue 2):e120–36.

32

Tanomaru-Filho M, Prado MC, Torres FFE, Viapiana R, Pivoto-João MMB, GuerreiroTanomaru JM. Physicochemical properties and bioactive potential of a new epoxy resin-based root canal sealer. Braz Dent J. 2019;30:563–8.

33

Marín-Bauza GA, Silva-Sousa YTC, da Cunha SA, Rached FJA, Bonetti-Filho I, Sousa-Neto MD, et al. Physicochemical properties of endodontic sealers of different bases. J Appl Oral Sci. 2012;20:455–61.

34

Elyassi Y, Moinzadeh AT, Kleverlaan CJ. Characterization of leachates from 6 root canal sealers. J Endod. 2019;45:623–7.

35

Torres FFE, Guerreiro-Tanomaru JM, Bosso-Martelo R, Espir CG, Camilleri J. Solubility , Porosity, dimensional and volumetric change of endodontic sealers. Braz Dent J. 2019;30:368–73.

36

Silva Almeida LH, Moraes RR, Morgental RD, Pappen FG. Are premixed calcium silicate–based endodontic sealers comparable to conventional materials? A systematic review of in vitro studies. J Endod. 2017;43:527–35

37

Urban K, Neuhaus J, Donnermeyer D, Schäfer E, Dammaschke T. Solubility and pH value of 3 different root canal sealers: A Long-term Investigation. J Endod. 2018;44:1736–40.
